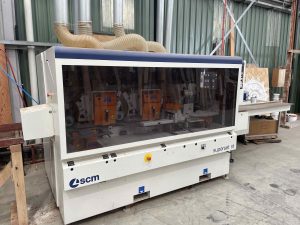

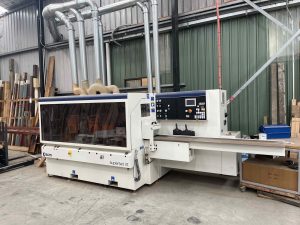

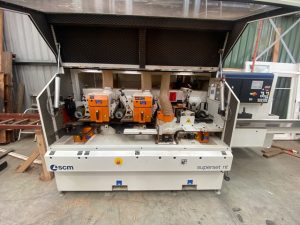

SCM SUPERSET NT MOULDER

This SCM superset NT moulder is 6 sided with automatic throughfeed.  Built on a solid tubular base in strong ribbed steel. The sturdiness and weight of the base reduces vibrations to a minimum, as well as guaranteeing life-long constant high quality performance.

This 6 sided SCM Moulder is top of the range and customised with HEAVY DUTY specifications to handle Australian Hardwood Timbers.

UPGRADED FEATURES
– 260mm Width & 200mm Height allowance.
– 2.5M long in-feed table
– 15 HP planer motors 8300 RPM
– Powered Steel & Rubber Heavy duty feed rollers
– 5 x Heliplan cutter heads made in Germany supplied by Leitz Tooling Systems. Hardly used !

PLUS: Worktable Rip Saw attachment. 200mm x 50mm profile capacity.
Equipment for multi-blade vertical cutting on second bottom horizontal spindle
–50 mm maximum thickness of work piece
–200 mm maximum diameter of blades
–10 mm minimum width of work piece
–170 mm maximum distance of feed rollers, from right fence
–5 riving knives for blades 2.2 mm thickness
–1 supplementary pressure shoe with rexilon inserts

Other Features
– Control 10 unit – 7 inch digital touch screen display.
– T-Set rapid tool locking
– Anti-kickback feature
– Preset 25: device for cutter head measurement

POWER REQUIREMENTS
Nominal power of Machine _162A (Amps) as per machine wiring diagram, three phase and Neutral connection are required.

PNUEMATIC REQUIREMENTS
Compressed air supply 6 bar and air consumption 250 Nl/min (minimum size pipe Inside Diam.10mm)

REPLACEMENT COST $220,000. This machine is virtually NEW with only 200 Hours of operation.

Genuine sale as business plans changed.  Take advantage of a massive discount and not waiting 12 months manufacturing time frame.  It’s ready to go !
